Z3 Dual Tone Operation (ALT TONE)

To congure the Dual Tone for the Z3 Control Head ALT TONE button, set the DIP switches according to Table 5 (reference Figure 4).

Table 5: Z3 Dual Tone ALT TONE Conguration

Switch Position 2 Switch Position 3 Switch Position 4 Conguration

Down Down Down Wail

Up Down Down Yelp

Down Up Down Hyper-Yelp 1

Up Up Down Hyper-Yelp 2

Down Down Up *Hi-Lo 1

Up Down Up Hi-Lo 2

Down Up Up Hyper-Lo 1

Up Up Up Hyper-Lo 2

*Factory Default Setting.

Universal Dual Tone (non-Z3 Systems) - The Dual Tone feature can be congured to operate with most industry standard siren systems, turning

a single tone siren system into a Dual Tone system. The Dual Tone feature will only operate when the primary siren system is generating a tone.

When there is a signal from a primary siren and the Dual Tone input is activated, the Banshee can generate one of eight tones.

To congure the Dual Tone, set the DIP switches according to Table 6 (reference Figure 5).

Table 6: Universal Dual Tone Conguration

Switch Position 2 Switch Position 3 Switch Position 4 Conguration

Down Down Down *Wail

Up Down Down Yelp

Down Up Down Hyper-Yelp 1

Up Up Down Hyper-Yelp 2

Down Down Up Hi-Lo 1

Up Down Up Hi-Lo 2

Down Up Up Hyper-Lo 1

Up Up Up Hyper-Lo 2

*Factory Default Setting.

Electronic Air Horn Conguration

The Electronic Air Horn can be used with a primary siren or as an independent Electronic Air Horn. The Banshee does not require a signal from a

primary siren to activate the Electronic Air Horn feature. The Banshee will generate the congured tone as long as the Air Horn input is activated.

There are two tones that can be congured to be used with the Air Horn input:

- Electronic Air Horn.

- Yelp Stop.

To congure the Electronic Air Horn, set the DIP switch according to Table 7 (reference Figure 6).

Table 7: Electronic Air Horn Tone Conguration

Switch Position 8 Conguration

Down *Electronic Air Horn

Up Yelp Stop

*Factory Default Setting.

Note: If the Electronic Air Horn is used in a vehicle that must be California Title 13 compliant, a relay (user supplied) must be installed so that the

Air Horn input is disabled in accordance with the regulation.

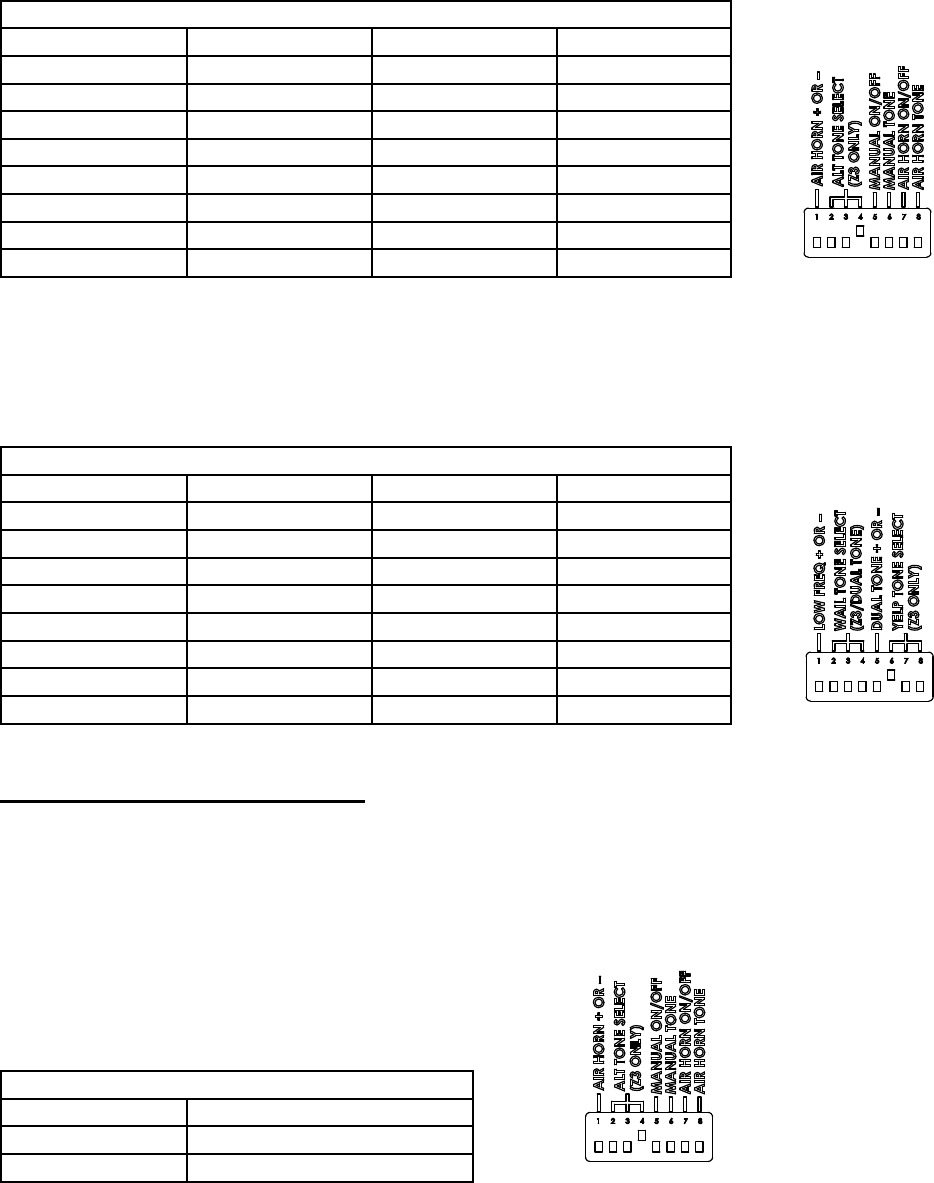

Figure 4

Figure 5

Figure 6
